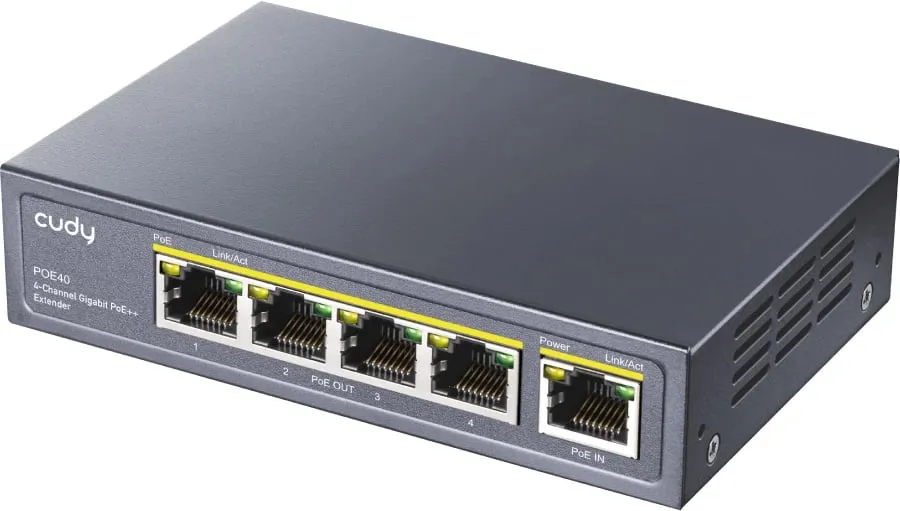

4-Channel Gigabit PoE++ Extender

SpecificationModel POE40 No. of channels 1(PoE IN) into 4(PoE OUT) Pass Through Data Rates 10/100/1000 Mbps half/full duplex Power over Ethernet input Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-) Power over Ethernet Output Pin Assignment and Polarity: 1/2 (+), 3/6 (-)Output Power: up to 12W for 4 PSE or 30W for 2 PSEIndicators LED indicators are located on the RJ45 connectorPower indicator: PoE enabledPowered success:PowerNetwork indicator: Link/ActConnectors Shielded RJ-45, EIA 568A and 568B Network cables Shielded category 5E (or higher) Dimensions 119mm x 85mm x 28mm Mounting Wall of shelf Environment Indoor Environmental Conditions Operating Ambient Temperature: 0 to 45℃Operating Humidity: Maximum 90%, Non-condensingStorage Temperature:-40 to 70℃Storage Humidity: Maximum 95%, Non-condensingRegulatory Compliance IEEE 802.3af (15.4W)IEEE 802.3at (30W)IEEE802.3at 4Pairs(60W)
