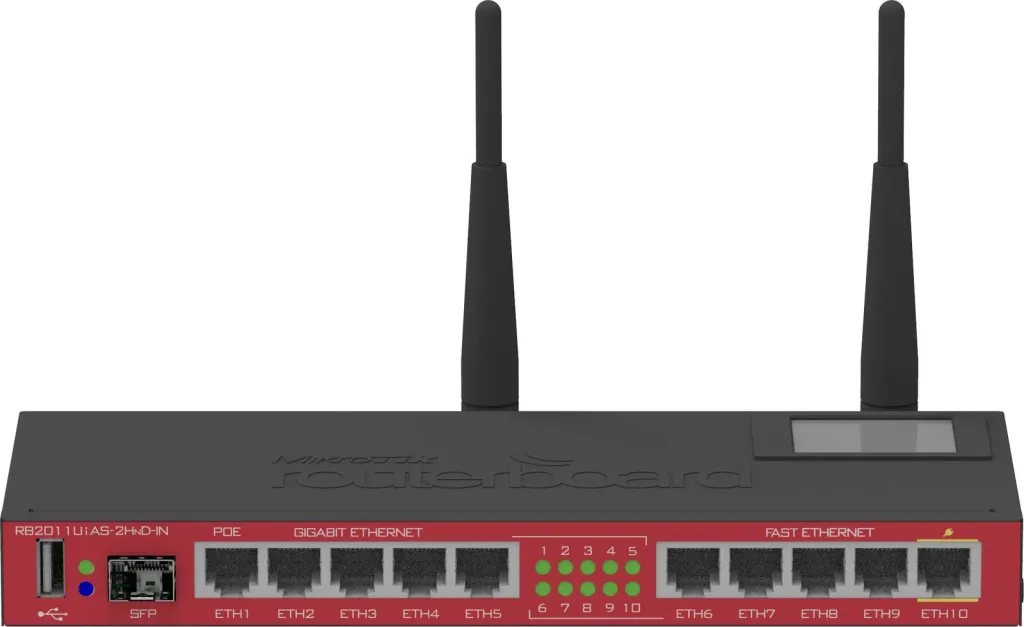

MikroTIk RB2011UiAS-2HnD-IN

Specifications Details Product code RB2011UiAS-2HnD-IN Architecture MIPSBE CPU AR9344 CPU core count 1 CPU nominal frequency 600 MHz Switch chip model AR8327 Dimensions 214mm x 86mm for PCB RouterOS license 5 Operating System RouterOS Size of RAM 128 MB Storage size 128 MB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -40°C to 60°C Suggested price $129.00 Wireless capabilities Details Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 4 Wireless 2.4 GHz chip model AR9344 Wireless 2.4 GHz generation Wi-Fi 4 Ethernet Details 10/100 Ethernet ports 5 10/100/1000 Ethernet ports 5 Fiber Details SFP DDMI Yes SFP ports 1 Peripherals Details Serial console port RJ45 Number of USB ports 1 USB Power Reset Yes USB slot type USB type A Max USB current (A) 1 Powering Details Number of DC inputs 2 (PoE-IN, DC jack) DC jack input Voltage 8-30 V Max power consumption 11 W Cooling type Passive PoE in Passive PoE PoE in input Voltage 8-30 V PoE-out Details PoE-out ports Ether10 PoE out Passive PoE Max out per port output (input 18-30 V) 510 mA Max total out (A) 510 mA Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP20 Other Details PCB temperature monitor Yes Voltage Monitor Yes Beeper Yes Wireless specifications 2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 30 -96 11MBit/s 28 -80 6MBit/s 30 -96 54MBit/s 27 -80 MCS0 30 -92 MCS7 25 -73
