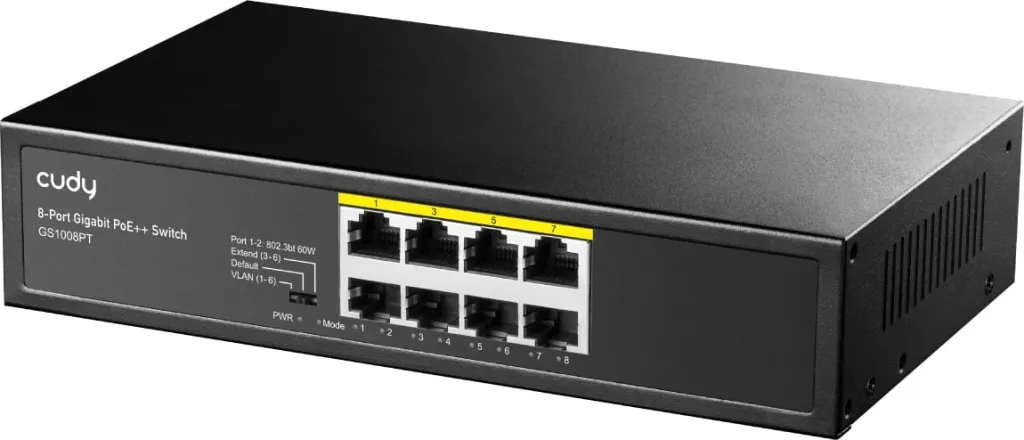

GS1008PT 8-Port Gigabit PoE+ Switch 120W

120 W Power budget & 60 W Maximum One PortThe total PoE power supported by the PoE port is 120 W, and the maximum for port #1~#2 is 60 W. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.Rack Mount & Wall Mount & Desktop● Provide a variety of installation methods for easy deployment in any environment● Support Wall mount installation● Support Desktop installationPlug&Play, Fanless designPlug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-) SurveillanceWorks with IP Cameras for home and office, small businessVoIP Conference CallWorks with VoIP phones for business conferenceWi-Fi CoverageWorks with WiFi APs for office and businessSpecificationsModel GS1008PT Power Input: AC 100-240V, 50/60Hz Ethernet 8 *10/100/1000M PoE Port Switching Capacity 16Gbps Throughput 11.9Mpps Packet Buffer 1.5Mb MAC Address 2K Jumbo Frame 9216bytes Transfer Mode Store and forward MTBF 100000 hourNetwork protocol IEEE802.3 (10Base-T)IEEE802.3u (100Base-TX)IEEE802.3ab (1000Base-TX)IEEE802.3x (Flow control)PoE Protocol IEEE802.3af （15.4W）IEEE802.3at （30W）IEEE802.3at （4 Pair 60W） Network Medium 10Base-T : Cat3、4、5 or above UTP(≤100m)100Base-TX : Cat5 or above UTP(≤100m)1000Base-TX : Cat5 or aboveUTP(≤100m) Working Environment Working Temperature：-20~50°CStorage Temperature：-40~85°CWorking Humidity ：10%~90%，non-condensingStorage Temperature：5%~90%，non-condensingWorking Height：Maximum10,000 feetStorage heigh：Maximum 10,000 feet LED Indicators PWR（power supply），Mode（DIP），1-8 Green（Link&Data） PWR Lighting：PoweredUn-Light：No Power Mode Lighting：VLANUn-Light：DefaultFlashing：Extend 1-8 Green Lighting：ConnectingFlashing：Data TransmitUn-Light：Disconnect DIP Switch VLAN：Port Isolation, 1-6 port is isolated each other, but all can communicate with uplink port 7/8, AI enableDefault: Normal mode, all port can communicate with each other, The port AI mode is closed.Extend：Extend Mode, 3-6 port support 250 meters transmission on 10Mbps/s ,AI enableProduct Dimension 200mm*118mm*44mm Package Dimension 245mm*190mm*60mm N.W 0.6kg G.W 0.9kg Packing Info Carton MEAS：505*320*402mmPacking Qty：20 unitsPacking Weight：19KG Package List Input Voltage ：AC 100-240 VPackage List Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,
